Products Mini PC ZOAN MINIPC TKDN P200X-WS160-M8

product

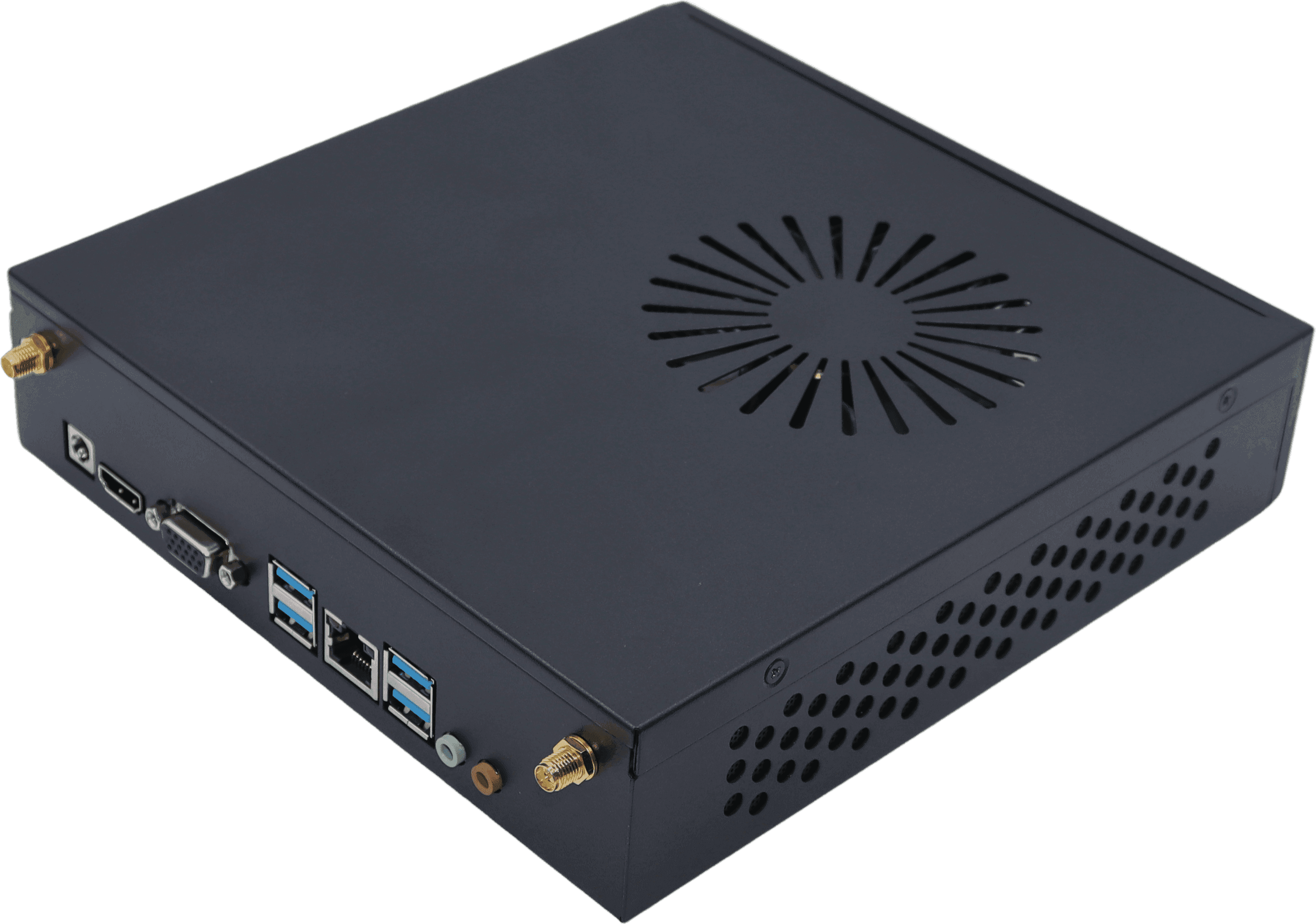

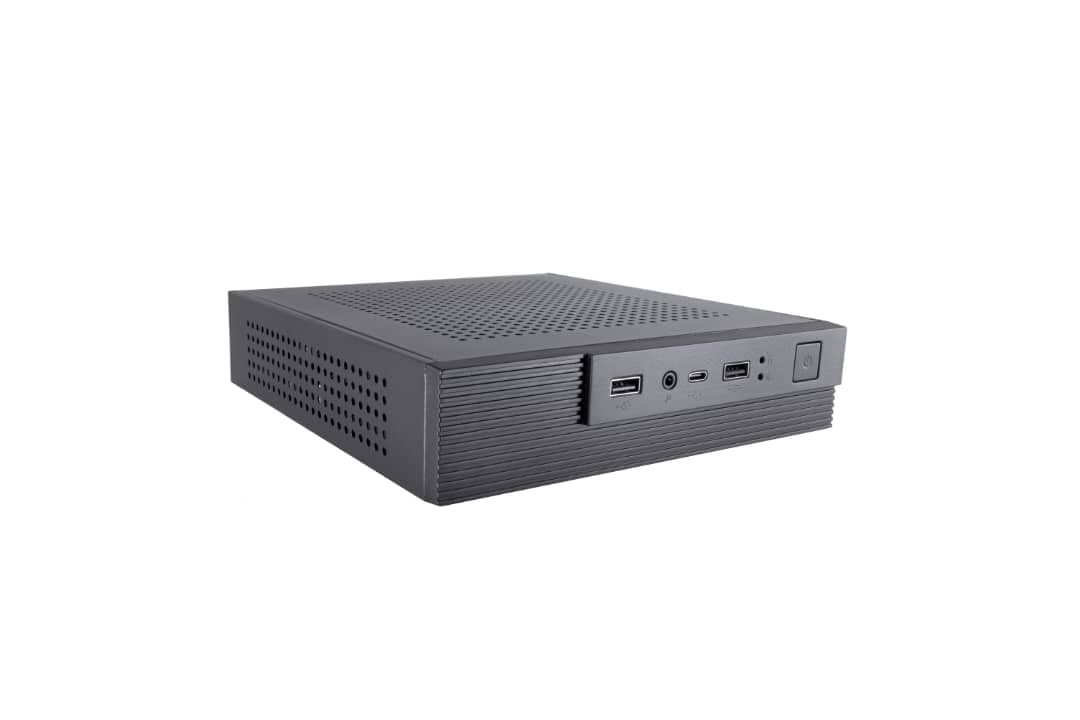

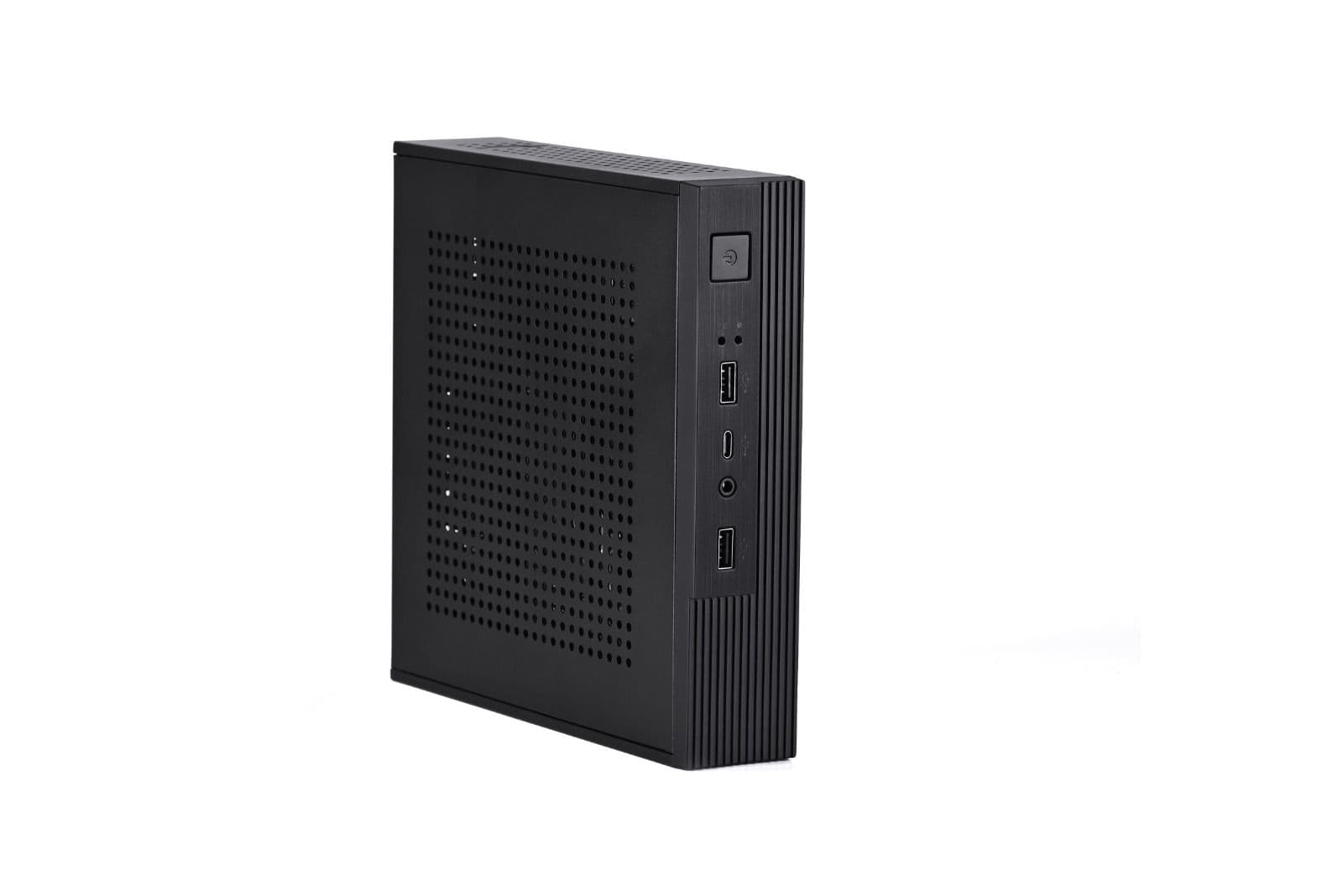

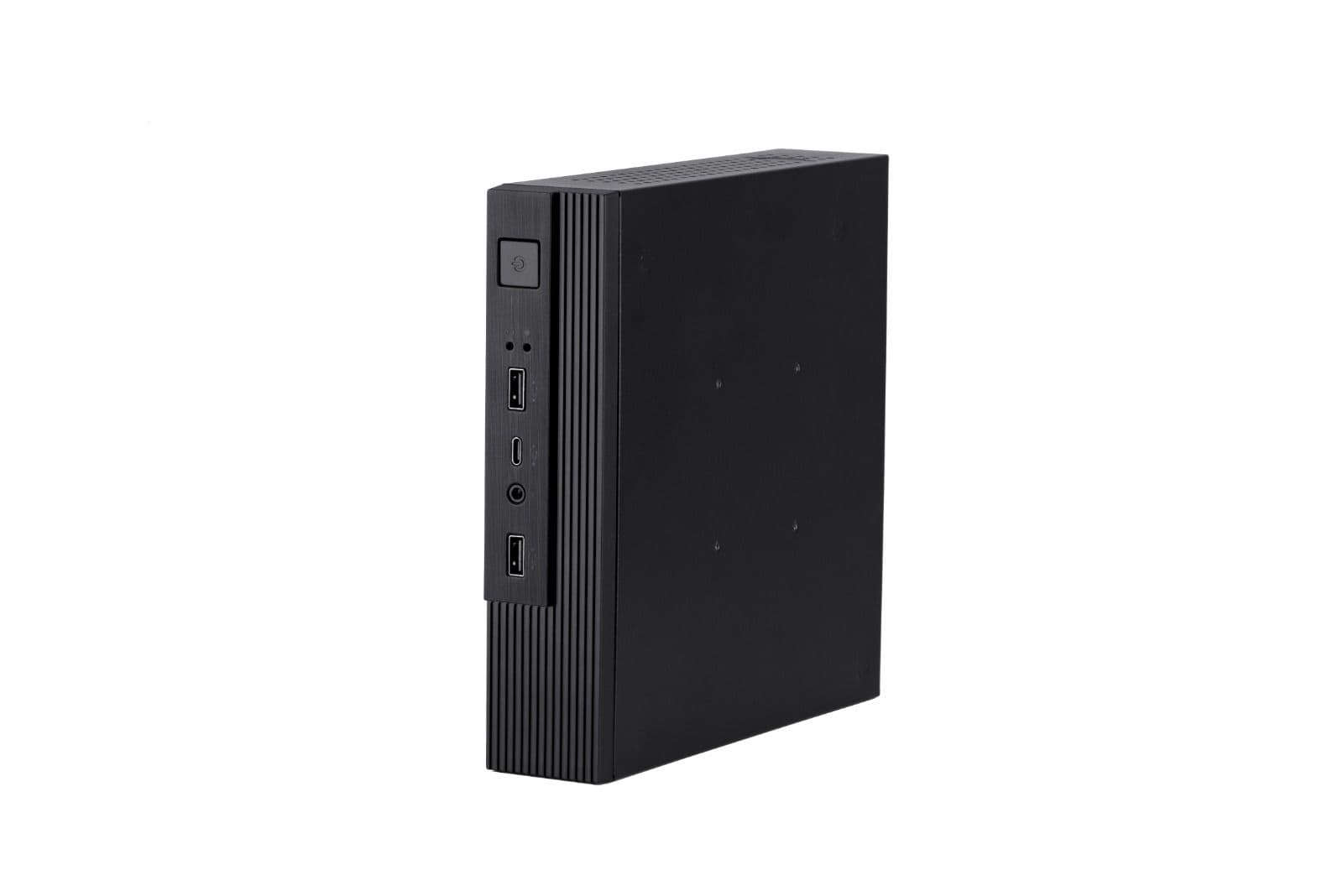

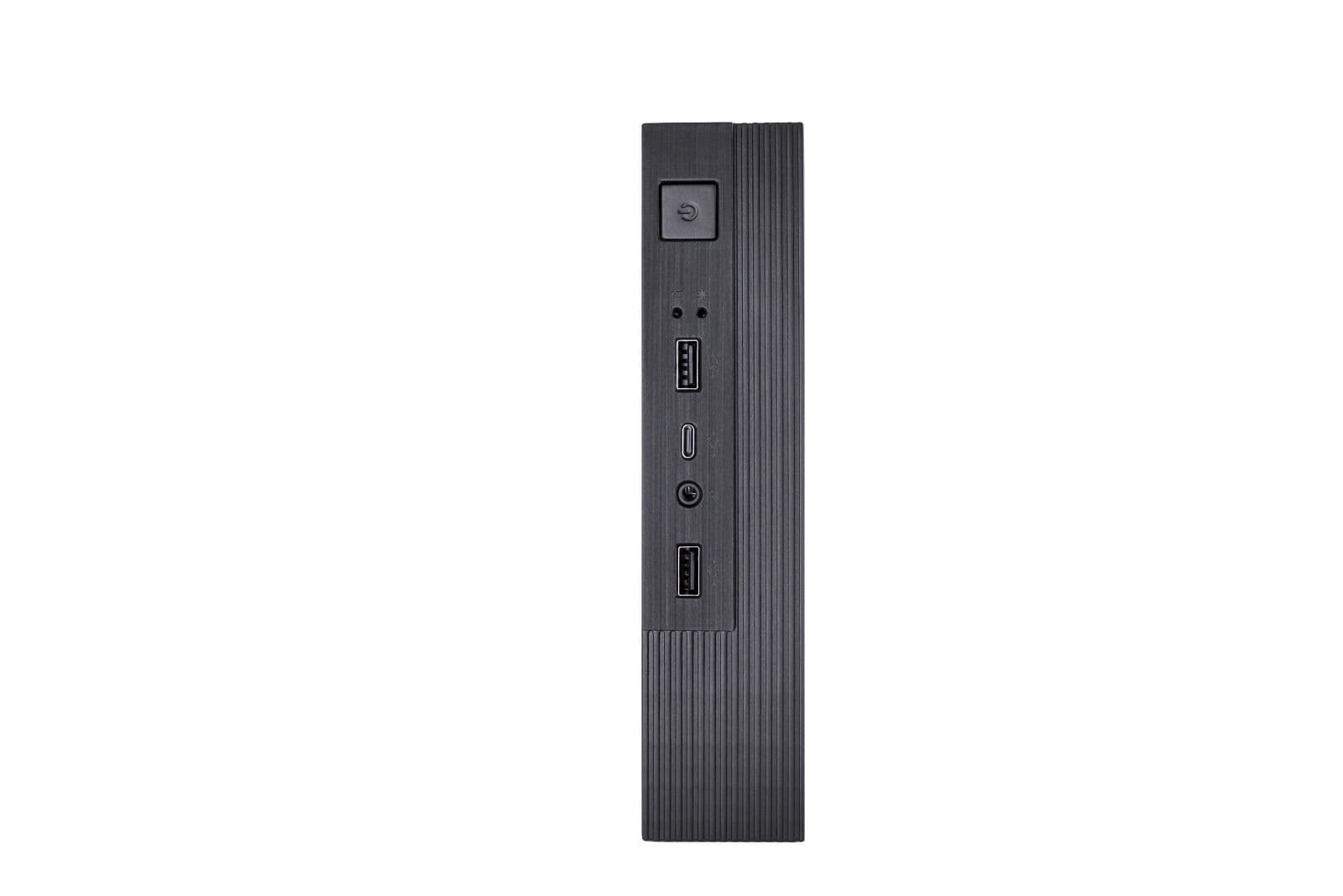

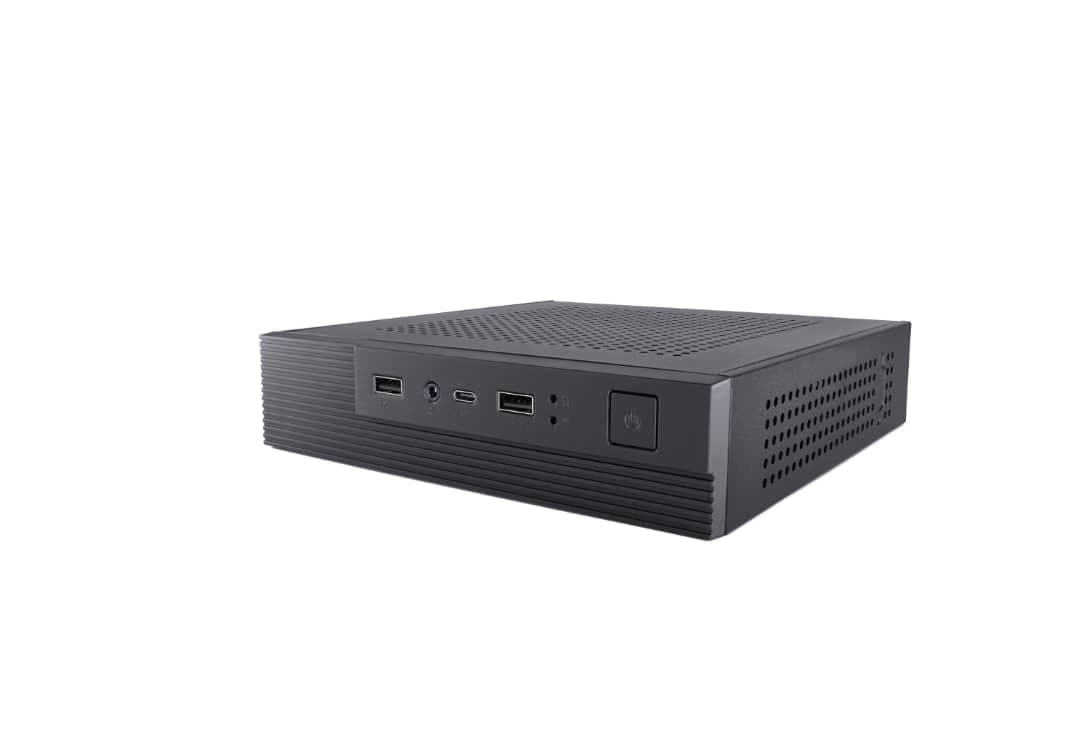

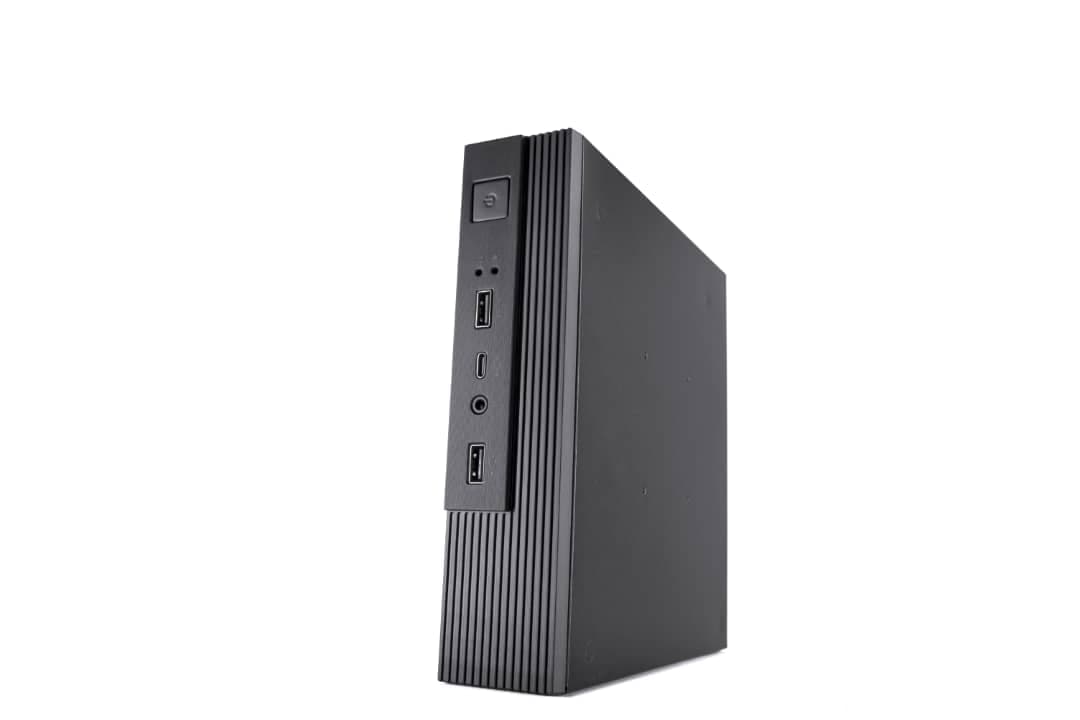

ZOAN MINIPC TKDN P200X-WS160-M8

The ZOAN MiniPC P200X-WS160-M8 is a mini computing solution designed to deliver high performance in an ultra-compact form factor. Powered by 12th, 13th, or 14th Gen Intel® Core™ i3/i5/i7 processors and the Intel® H610 chipset, this mini PC is suitable for various applications such as office automation, industrial automation, point-of-sale (POS) systems, home entertainment, or as a reliable digital control center. With comprehensive connectivity and flexible storage options, it offers exceptional value in a very small footprint.

displayed-image
https://api.zoan.co.id/uploads/T4_3_8d4eb81837.jpg
https://api.zoan.co.id/uploads/T4_2_3e38ffb101.jpg
https://api.zoan.co.id/uploads/IMG_20250802_WA_0009_41987e067f.jpg
https://api.zoan.co.id/uploads/IMG_20250802_WA_0007_9838812c3e.jpg
https://api.zoan.co.id/uploads/IMG_20250802_WA_0008_ec2d716e4c.jpg
https://api.zoan.co.id/uploads/Gambar_Whats_App_2025_08_09_pukul_15_51_49_c2cf847a_db9316da68.jpg
https://api.zoan.co.id/uploads/T4_1_5a539e34a4.jpg
https://api.zoan.co.id/uploads/IMG_20250802_WA_0006_0a88e552a8.jpg

Specifications

Processor

  • Supports Intel® Core™ i3/i5/i7 12th, 13th, or 14th Gen

Motherboard

  • H610

RAM

  • 2x DDR4 Slots, Up to 32GB (2133/2400/2800/2933/3200 MHz)

ROM

  • 2x SATA 3.0, 1x M.2 SSD Slot (PCIe NVMe)

Operating System

  • Window/Linux

Networking

  • 1x Gigabit Ethernet (Realtek 8111H), 802.11ac WIFI + Bluetooth 5.0/ 802.11ax WIFI + Bluetooth 5.2

I/O Ports

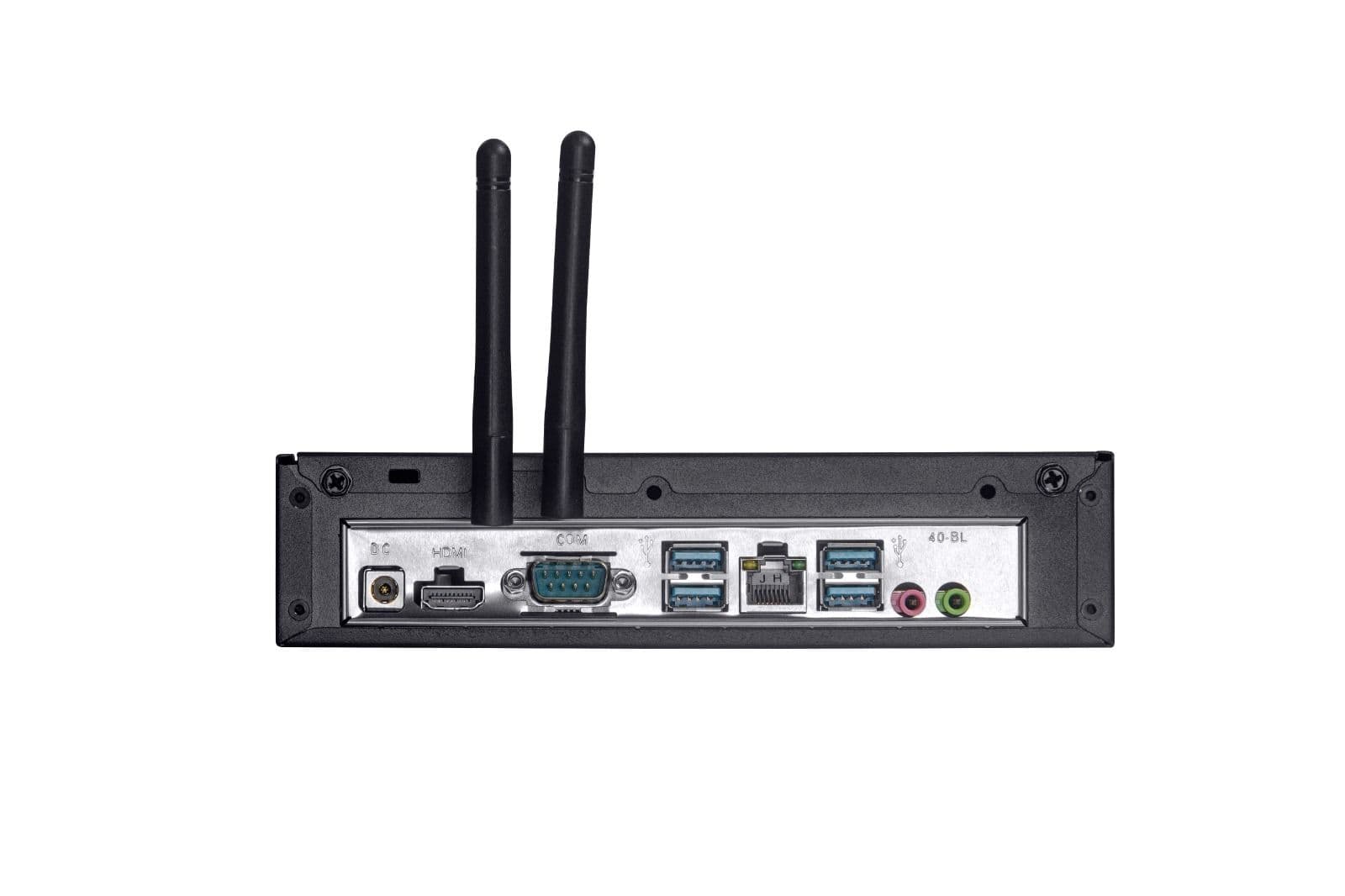

  • Front: 2x USB 2.0, 1x USB Type-C, Audio Jack Rear: 4x USB 3.0, 1x HDMI, 1x COM (Serial), 1x RJ-45, 1x Mic In, 1x Line Out

Power Supply

  • External Power Supply Unit 19V7.89A

Dimension

  • 197 mm (L) x 194 mm (W) x 45 mm (H)

Outer Box

  • 240 x 135 x 255 mm

Weight

  • 2.16 kg

Accessories

  • Wifi module, DC adaptor, Wifi anteana, Mini PC base, Mounting bracket, Cooler, screws, Silicone pad

Supported Operating System

Operating System

Window

Linux
